Solar Accessories

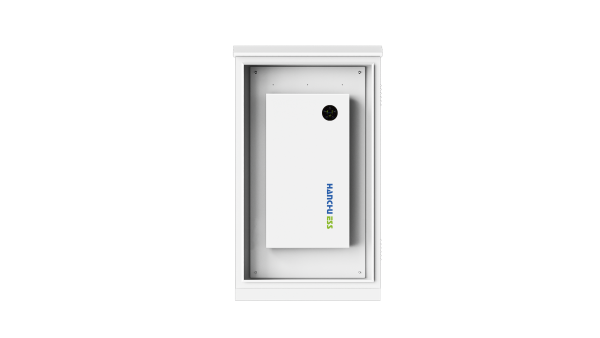

Weight: 57kg Dimension(W*D*H): 750*250*1200mm Material: steel 1.5mm Ingress Protection Degree: IP55 Installation: Floor Warranty: 2 years

Read more less

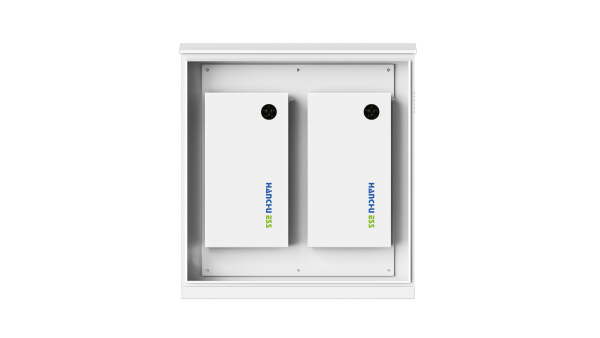

Weight: 100kg Dimension(W*D*H): 1200*250*1200mm Material: steel 2.0mm Ingress Protection Degree: IP55 Installation: Floor Warranty: 2 years

Read more less

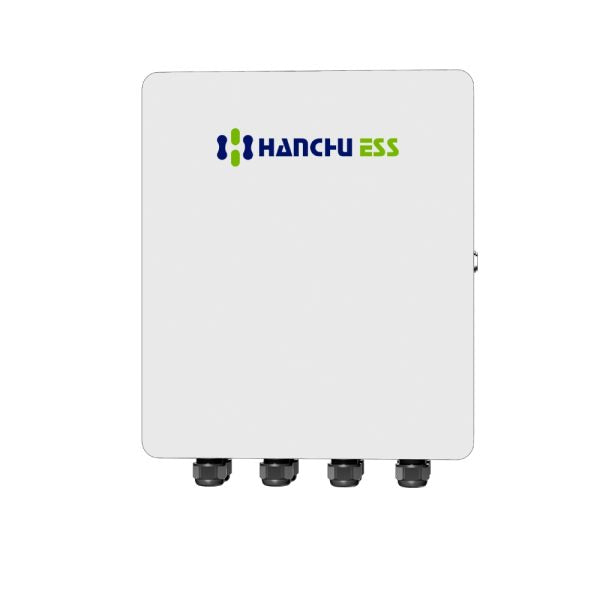

Input Data Nominal AC Input Voltage Range: 220/230/240V Max. AC Current (Grid): 100A Max. AC Current (PV INV): 32A Max. AC Current (Inverter): 32A Rated AC Frequency: 50/60Hz Output Data Nominal AC Output Voltage Range: 220/230/240V Max. AC Current (Load): 100A Max. AC Current (Backup): 32A Max. AC Current (EV Charger): 32A Rated Output Frequency: 50/60Hz Switching Time: House Load Consumer Unit≤300ms, Additional Critical Load≤10ms Supported Devices Inverter: Yes Battery: Yes EV Charger: Yes Load: Yes General Data Activation Methods: Grid Startup + Inverter Startup Operating Modes: On Grid + Off Grid Bypass Mode: Manual Protection Class: I AC Surge Protection Type II: Yes Ingress Protection Degree: IP65 Operating Temperature Range: -20~50°C Relative Humidity Range: 5%~95% Operating Altitude: <4000m (>2000m derating) Cooling Concept: Natural convection Dimensions (W x H x D): 360*450.5*169.5 mm Weight: 13.9kg Warranty: 2 years

Read more less
