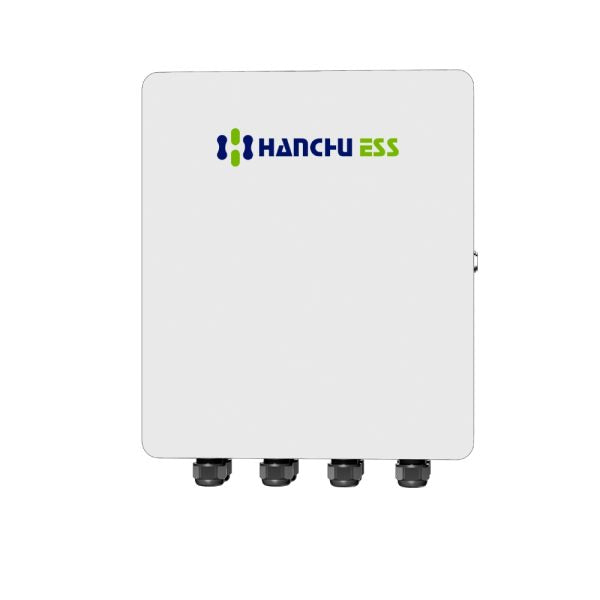

Hanchu Gateway

Description

Input Data

  • Nominal AC Input Voltage Range: 220/230/240V
  • Max. AC Current (Grid): 100A
  • Max. AC Current (PV INV): 32A
  • Max. AC Current (Inverter): 32A
  • Rated AC Frequency: 50/60Hz

Output Data

  • Nominal AC Output Voltage Range: 220/230/240V
  • Max. AC Current (Load): 100A
  • Max. AC Current (Backup): 32A
  • Max. AC Current (EV Charger): 32A
  • Rated Output Frequency: 50/60Hz
  • Switching Time: House Load Consumer Unit≤300ms, Additional Critical Load≤10ms

Supported Devices

  • Inverter: Yes
  • Battery: Yes
  • EV Charger: Yes
  • Load: Yes

General Data

  • Activation Methods: Grid Startup + Inverter Startup
  • Operating Modes: On Grid + Off Grid
  • Bypass Mode: Manual
  • Protection Class: I
  • AC Surge Protection Type II: Yes
  • Ingress Protection Degree: IP65
  • Operating Temperature Range: -20~50°C
  • Relative Humidity Range: 5%~95%
  • Operating Altitude: <4000m (>2000m derating)
  • Cooling Concept: Natural convection
  • Dimensions (W x H x D): 360*450.5*169.5 mm
  • Weight: 13.9kg
  • Warranty: 2 years

Hanchu Gateway

Product form

Input Data Nominal AC Input Voltage Range: 220/230/240V Max. AC Current (Grid): 100A Max. AC Current (PV INV): 32A Max.... Read more

£650.05 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    Apply For A Trade Account

    Description

    Input Data

    • Nominal AC Input Voltage Range: 220/230/240V
    • Max. AC Current (Grid): 100A
    • Max. AC Current (PV INV): 32A
    • Max. AC Current (Inverter): 32A
    • Rated AC Frequency: 50/60Hz

    Output Data

    • Nominal AC Output Voltage Range: 220/230/240V
    • Max. AC Current (Load): 100A
    • Max. AC Current (Backup): 32A
    • Max. AC Current (EV Charger): 32A
    • Rated Output Frequency: 50/60Hz
    • Switching Time: House Load Consumer Unit≤300ms, Additional Critical Load≤10ms

    Supported Devices

    • Inverter: Yes
    • Battery: Yes
    • EV Charger: Yes
    • Load: Yes

    General Data

    • Activation Methods: Grid Startup + Inverter Startup
    • Operating Modes: On Grid + Off Grid
    • Bypass Mode: Manual
    • Protection Class: I
    • AC Surge Protection Type II: Yes
    • Ingress Protection Degree: IP65
    • Operating Temperature Range: -20~50°C
    • Relative Humidity Range: 5%~95%
    • Operating Altitude: <4000m (>2000m derating)
    • Cooling Concept: Natural convection
    • Dimensions (W x H x D): 360*450.5*169.5 mm
    • Weight: 13.9kg
    • Warranty: 2 years
