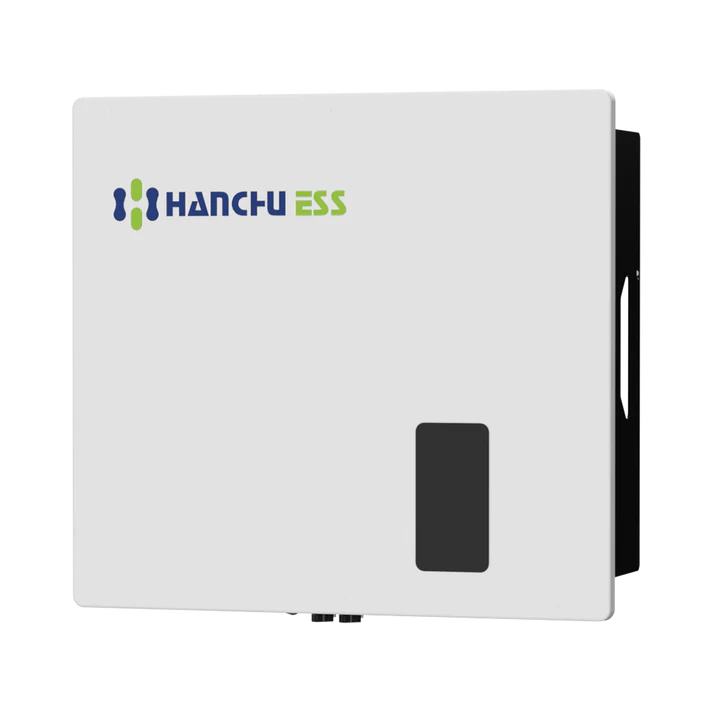

Hanchu Three Phase Hybrid Inverter 10kW

Description

Installation Guide - Click Here

Data Sheet - Click Here

PV Input
  • Max. PV array power : 15000Wp
  • Max. input voltage : 1100V
  • MPPT voltage range / rated input voltage : 200V to 950V/630V
  • Min. input voltage / start voltage : 60V/180V
  • No. of independent MPPT trackers / strings per MPPT input : 2 / 1
  • Max. input current per MPP tracker : 20A
  • Max. short-circuit current per MPP tracker : 30A
Battery Input
  • Nominal battery voltage : /
  • Battery voltage range : 120V to 600V
  • Max. charging / discharge power : 10000W
  • Max. charging current / Max. discharging current : 36A
  • Battery type : LFP
AC Output
  • AC voltage range / Nomlnal AC voltage : 270V to 480V /3/N/PE | 220/380V; 230/400V;240/415V
  • Rated AC grid frequency : 50Hz/ 60Hz
  • Rated apparent power : 10000VA
  • Max. apparent power : 10000VA
  • Rated grid output current (@230V) : 14.5A
  • Max. grid output current : 16A
AC Input
  • Rated grid voltage : 3/N/PE | 220/380V;230/400V;240/415V
  • Rated apparent power : 20000W
  • Max. input apparent power from grid : /
  • Rated input curent from grid : /
  • Max. input current from grid : 29.0A
EPS Output
  • Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V
  • Nominal output frequency : 50Hz/ 60Hz
  • Rated apparent power : 10000VA
  • Max. output apparent power : /
  • Peak output apparent power : 2 times of rated power | 10s
  • Max. output current : 14.5A
  • Max. switch time : <10ms
Efficiency
  • MPPT efficiency : 99.90%
  • Euro efficiency / Max. efficiency : 97.9%/98.4%
  • Max. battery to load efficiency : /
General Data
  • Dimensions (W*H*D) (mm) : 545*465*205
  • Device weight : 24.5Kg
  • Operating temperature range : -25℃~+60℃
  • Noise emissions (typical) : /
  • Standby consumption : /
  • Degree of protection (as per lEC 60529) : IP66
Features
  • User interface : LED & APP
  • Communication with BMS : CAN
  • Communication with meter : RS485
  • Communication with portal : WiFi/LAN/5G/Bluetooth
  • Other communication : /
  • Communication : /
  • Integrated power control / Zero export control : Integrated/Integrated
  • Certifications : EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/ G98/G99/G100/CEI 0-21/NEN
  • Warranty : 12 years

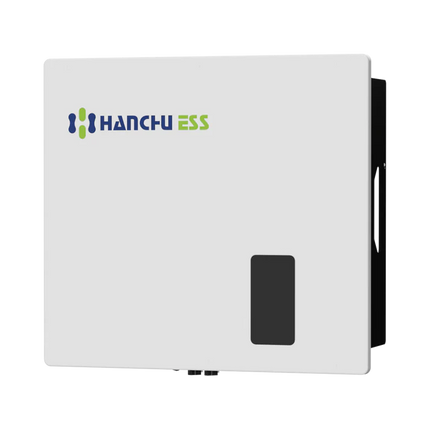

Hanchu Three Phase Hybrid Inverter 10kW

Product form

Installation Guide - Click Here  Data Sheet - Click Here  PV Input Max. PV array power : 15000Wp Max. input... Read more

£1,222.50 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    Apply For A Trade Account

    Description

    Installation Guide - Click Here

    Data Sheet - Click Here

    PV Input
    • Max. PV array power : 15000Wp
    • Max. input voltage : 1100V
    • MPPT voltage range / rated input voltage : 200V to 950V/630V
    • Min. input voltage / start voltage : 60V/180V
    • No. of independent MPPT trackers / strings per MPPT input : 2 / 1
    • Max. input current per MPP tracker : 20A
    • Max. short-circuit current per MPP tracker : 30A
    Battery Input
    • Nominal battery voltage : /
    • Battery voltage range : 120V to 600V
    • Max. charging / discharge power : 10000W
    • Max. charging current / Max. discharging current : 36A
    • Battery type : LFP
    AC Output
    • AC voltage range / Nomlnal AC voltage : 270V to 480V /3/N/PE | 220/380V; 230/400V;240/415V
    • Rated AC grid frequency : 50Hz/ 60Hz
    • Rated apparent power : 10000VA
    • Max. apparent power : 10000VA
    • Rated grid output current (@230V) : 14.5A
    • Max. grid output current : 16A
    AC Input
    • Rated grid voltage : 3/N/PE | 220/380V;230/400V;240/415V
    • Rated apparent power : 20000W
    • Max. input apparent power from grid : /
    • Rated input curent from grid : /
    • Max. input current from grid : 29.0A
    EPS Output
    • Nominal output voltage : 3/N/PE | 220/380V;230/400V;240/415V
    • Nominal output frequency : 50Hz/ 60Hz
    • Rated apparent power : 10000VA
    • Max. output apparent power : /
    • Peak output apparent power : 2 times of rated power | 10s
    • Max. output current : 14.5A
    • Max. switch time : <10ms
    Efficiency
    • MPPT efficiency : 99.90%
    • Euro efficiency / Max. efficiency : 97.9%/98.4%
    • Max. battery to load efficiency : /
    General Data
    • Dimensions (W*H*D) (mm) : 545*465*205
    • Device weight : 24.5Kg
    • Operating temperature range : -25℃~+60℃
    • Noise emissions (typical) : /
    • Standby consumption : /
    • Degree of protection (as per lEC 60529) : IP66
    Features
    • User interface : LED & APP
    • Communication with BMS : CAN
    • Communication with meter : RS485
    • Communication with portal : WiFi/LAN/5G/Bluetooth
    • Other communication : /
    • Communication : /
    • Integrated power control / Zero export control : Integrated/Integrated
    • Certifications : EN 61000/IEC 62109/EN 50549/VDE 4105/VFR 201/ G98/G99/G100/CEI 0-21/NEN
    • Warranty : 12 years
